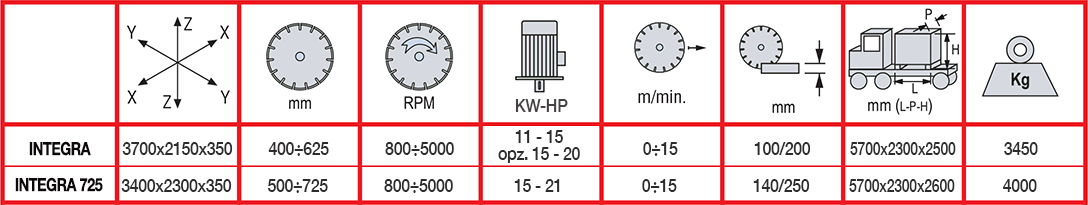

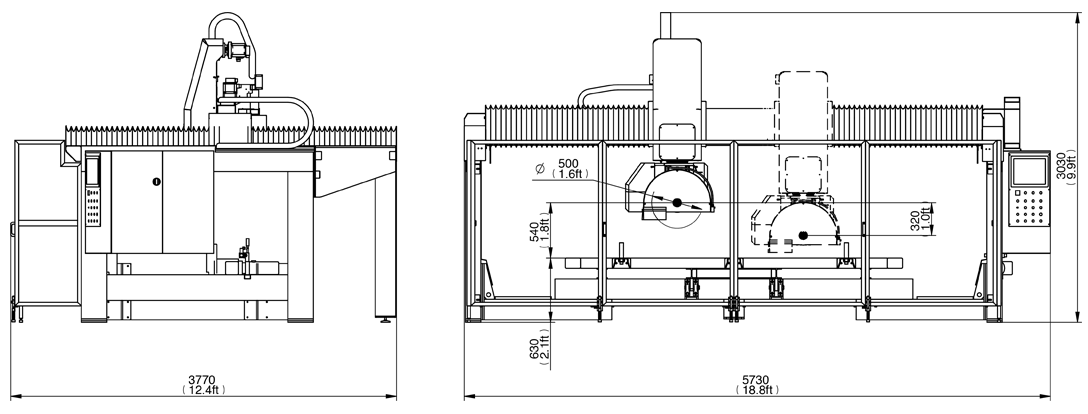

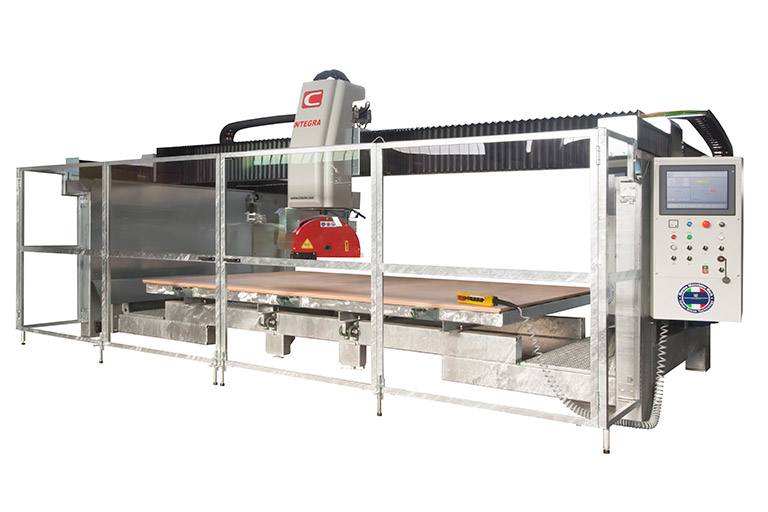

INTEGRA bridge saw has 5 controlled and interpolated axes (3+2). The INTEGRA is used for processing marble, granite and other natural and engineered stone. It is particularly appropriate to cut sink holes, steps and floors, to make profiles and bas-relief as well as artistic working on solid blocks. INTEGRA is a fast, accurate and reliable, single block machine in a rugged construction design. INTEGRA is built with electro welded metal that has been hot galvanized and treated with special ceramic paints. The 360° rotation of the head as well as the tilting of the head is managed by the CNC controller. The electric spindle disc motor has a shaft of 50 mm diameter bore for internal tool cooling. The tool fastening connection is ½ Gas with the thread on the left. The main motor is driven by electronic inverter for the digital control of the rpm, very useful when cutting special materials. The machine is provided with a digital ammeter to monitor the spindle current and the user interface is built on an industrial touch-screen. Several options are available (see below) to customize the machine according to customers' needs. Programming the machine is simple and user friendly and provides intelligent software tools to increase productivity. This helps to diminish the training time and greatly improves the operating time per slab in current day-to-day production. INTEGRA 5 axes can cut custom sized and shaped sink holes: this saves manual labour and manipulation time, increasing thus production and efficiency of your shop.

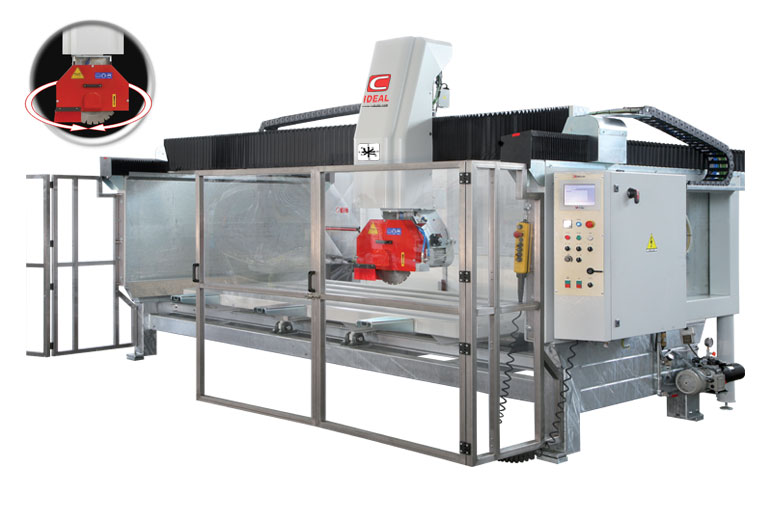

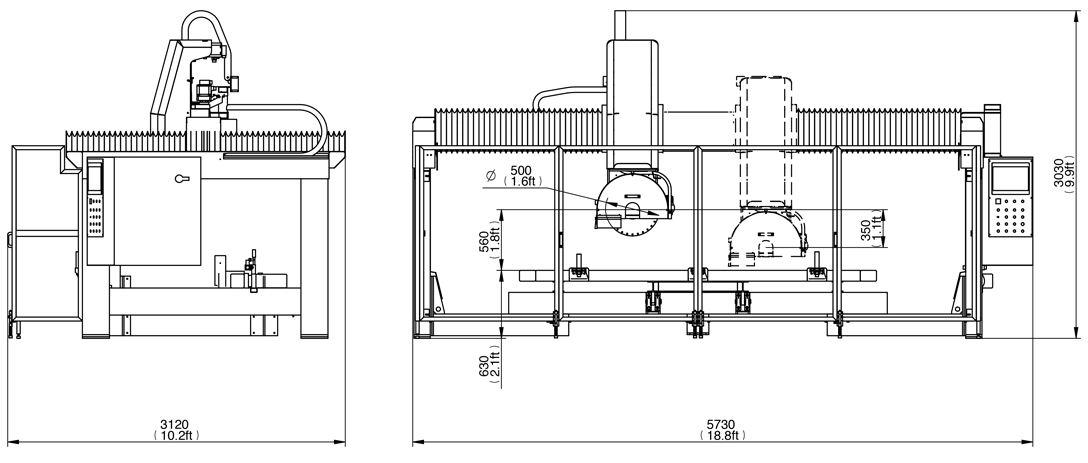

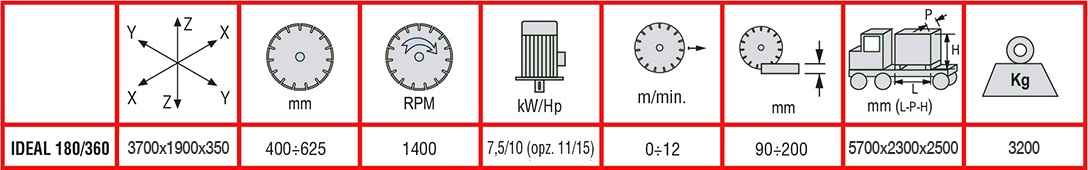

The IDEAL R180/360 is an automatic bridge saw with controlled head rotation. The four motorized axis use high precision brushless motors and are controlled in interpolated mode to provide best accuracy and speed. For an optimal control we use high precision linear bearings to minimize friction. The sliders are protected by bellows against dust and water splashes to insure the longest possible lifetime and precision of these essential parts of the machine. This rugged single block machine is built with electro welded metal that has been hot galvanized and treated with special ceramic paints. The worktop is built using thick metallic tubular structure to provide maximum rigidity. The cutting head rotation is electrically controlled and the tilting 0-90° is manually controlled. The rugged industrial touch-screen control panel provides options for optimized cutting and MOULDING. The interface has a user friendly design to assist the operator. This helps to diminish the training time and greatly improves the operating time per slab in current day-to-day production and thus boosting the productivity. Several options are available (see below) to customize the machine according to customers' specific needs.

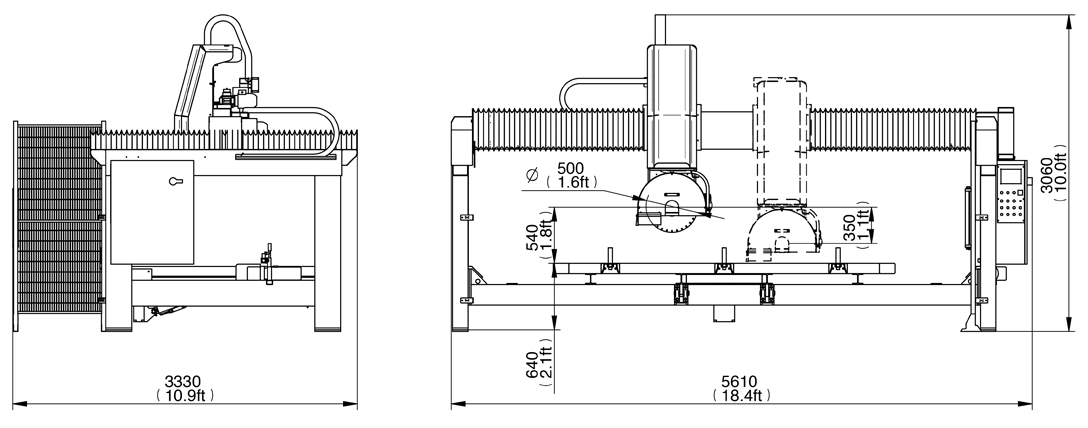

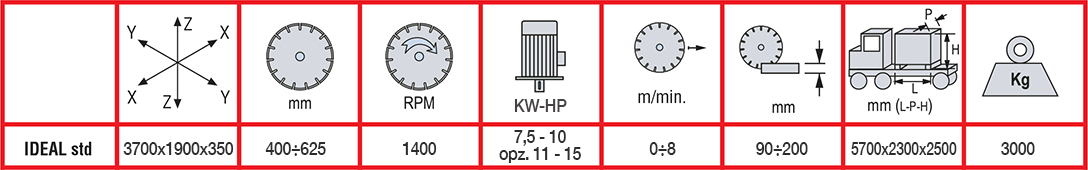

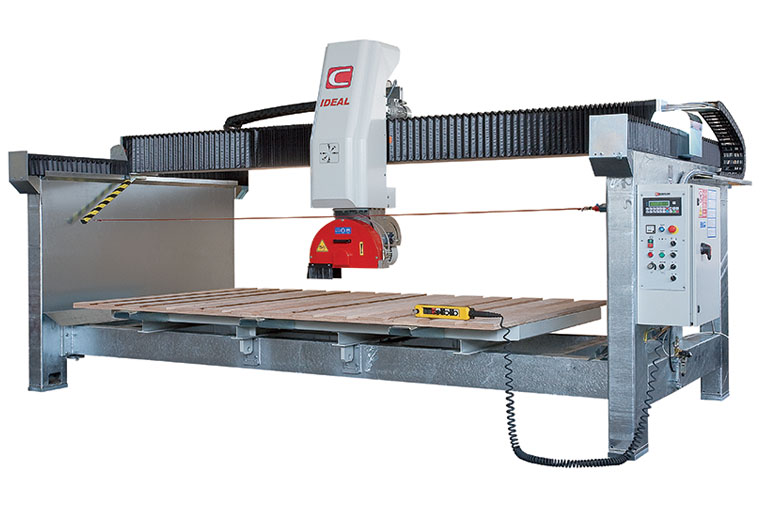

The IDEAL bridge saw has three motorized axes, controlled by servo positioning system. It is a rugged single block machine built with electro welded metal that has been hot galvanized and treated with special ceramic paints. Worktop is constructed with thick metallic tubular structure for best rigidity and ruggedness. It is fast, precise and reliable, built of sturdy metal and does not require masonry work for installation. Electric rotation and manual tilting 0-90 ° of the cutting head are standard. The control panel has an easy to use configuration and includes also a user friendly color touch screen. Several options are available (see below) to customize the machine according to customers' specific needs.

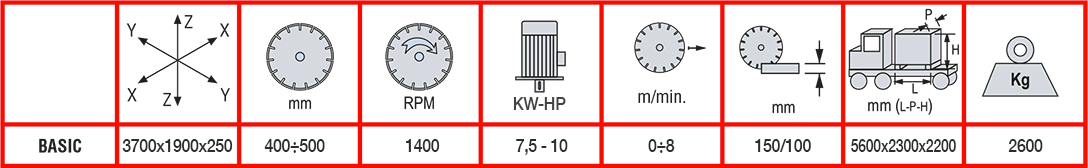

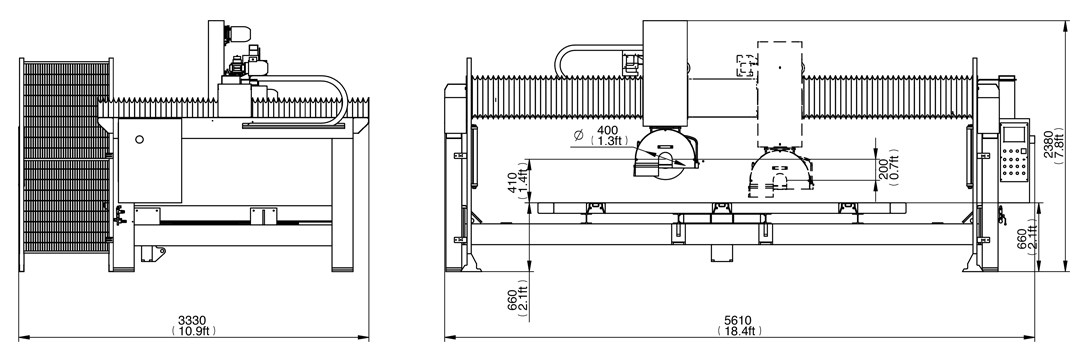

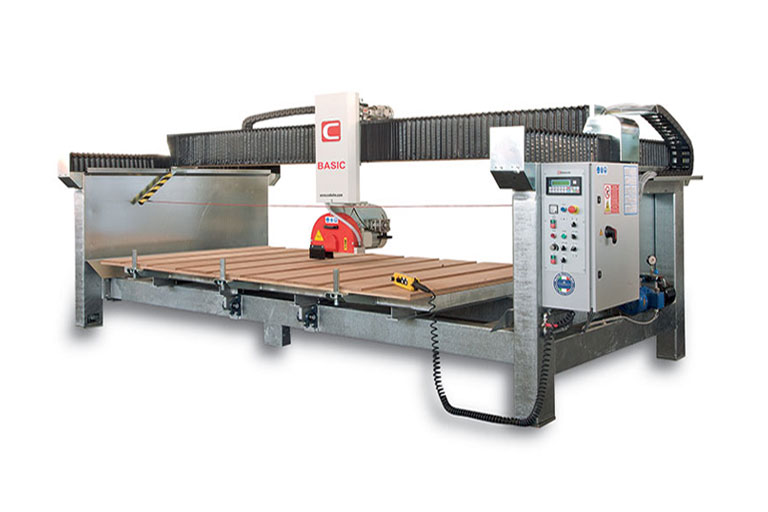

The BASIC bridge saw has three motorized axes controlled by motion positioning system. This is a rugged single block machine, built with electro welded metal that has been hot galvanized and treated with special ceramic paints. The worktop is constructed with thick metallic tubular structure for maximum rigidity. The bridge saw BASIC is simple to use for fast and precise execution of your work. The cutting head can rotate 0°- 90° and the tilting 0°-45° is provided by mechanical hand wheel. The control panel has a color display touch-screen TFT 7” unit. Several options are available (see below) to customize the machine according to customers' needs.

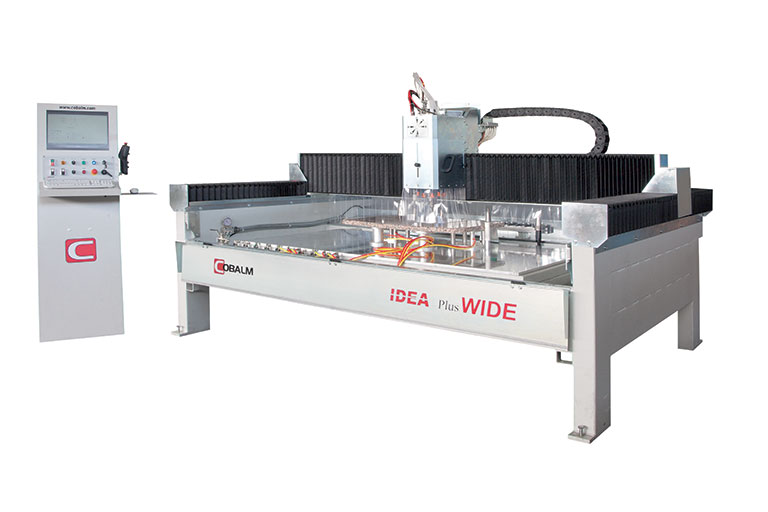

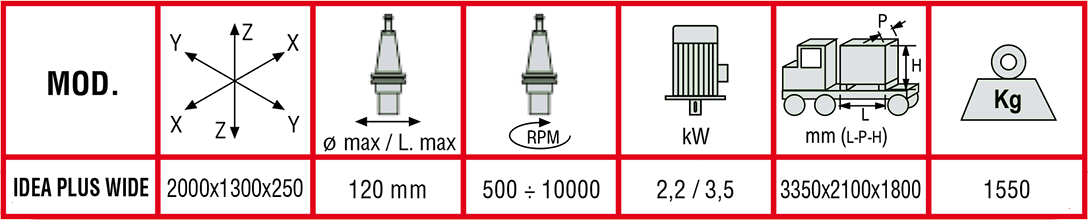

The IDEA PLUS WIDE Machining Center is a numerically controlled machine with 3 interpolated axes (X-Y-Z), for works of marble, granite and engineered stones. The IDEA PLUS WIDE is designed for realization of articles for funerary art, furniture and other construction works. In its design a particular attention has been paid to precision, ruggedness, user friendly operation and also the reduction of noise and dust in the environment. The electro-spindle is digitally controlled by inverter for precise speed adjustments. The electro-spindle is also provided with internal and external cooling water system for the tools. The IDEA PLUS WIDE machine is equipped with a stainless steel tank for water recovery and a recycling pump. The basic program for the personal computer includes the drilling plans suitable for the most important manufacturers of bronzes, in addition to a number of types of characters and images. Available as an option is an advanced CAD / CAM system, called MARS for the realization of complex profiles, taking material out of non-geometric areas, use of TRUE TYPE characters and other. SCULPTURE is program for the realization of catalogue Cobalm sculptures or sculptures registered by the 3D laser reader. Several options are available (see below).

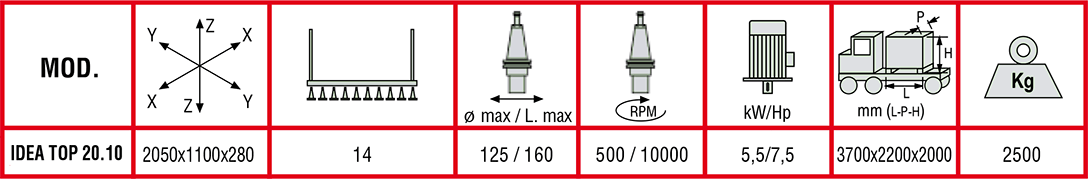

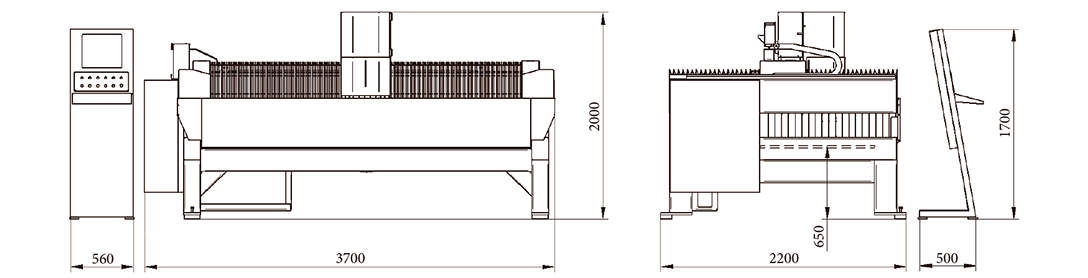

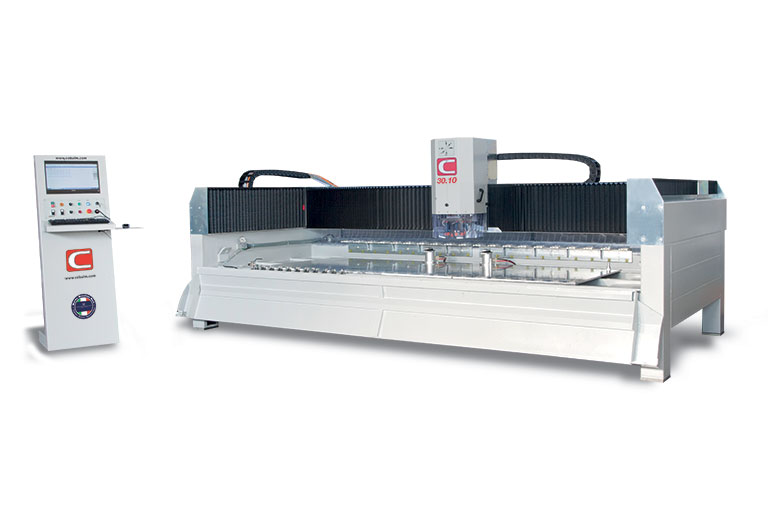

The IDEA TOP 20.10/30.10 is a numerically controlled machine center with 3 interpolated axis (X-Y-Z), for working of marble, granite and artificial stones. The machine is built on an electro welded metal structure that has been treated with special ceramic coatings. It is designed with a “moving bridge” structure and the work surface is made from solid aluminum plates. The axes movement is driven with brushless motors on precision racks with inclined teeth. The sliding is on linear ball bearing guides. The machine is equipped with a stainless steel tank for water recovery and recycling pump. The machine is particularly suitable for drilling, milling, chamfering, polishing of flat surfaces and edges. Several options are available (see below).

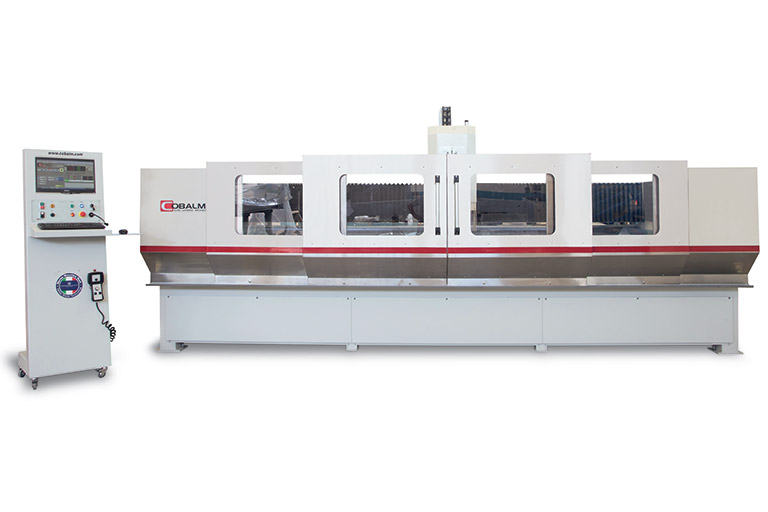

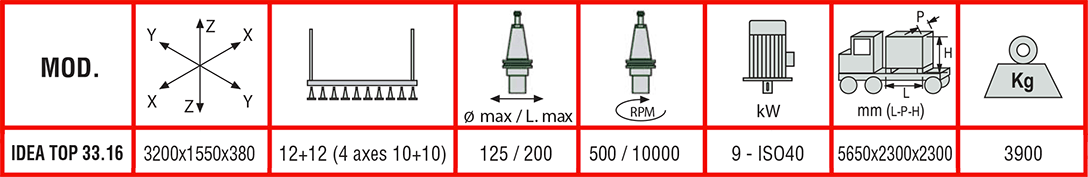

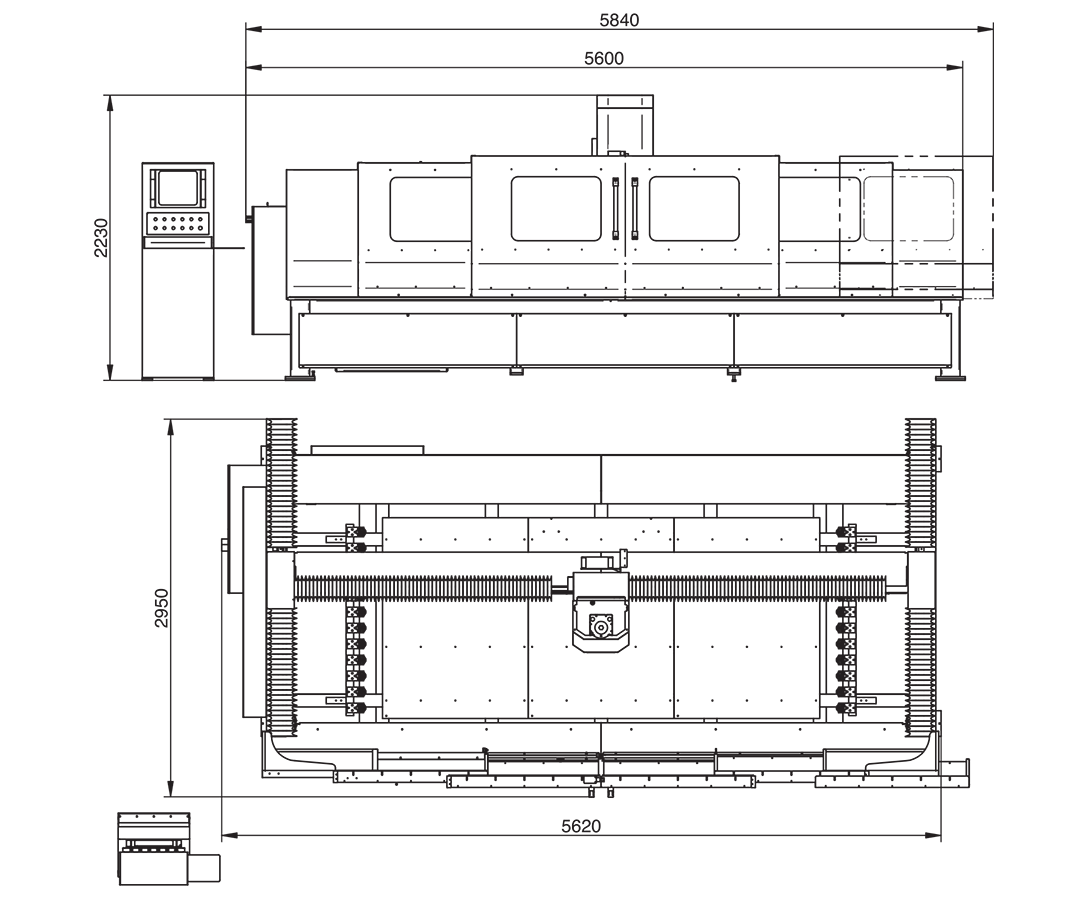

The IDEA TOP 33.16 is a numerically controlled machine centre with 3/4 interpolated axis (X-Y-Z), for working of marble, granite and engineered stones. The machine is built on an electro welded metal structure that has been treated with polyurethane coatings. It is designed with a “moving bridge” structure and the work surface is made with rectified solid aluminum plates. The axes movement is driven with brushless motor on precision racks with inclined teeth.. The sliding is on linear ball bearing guides. The IDEA TOP 33.16 is especially suitable for drilling, milling, chamfering, polishing of flat surfaces and edges. Several options are available (see below).

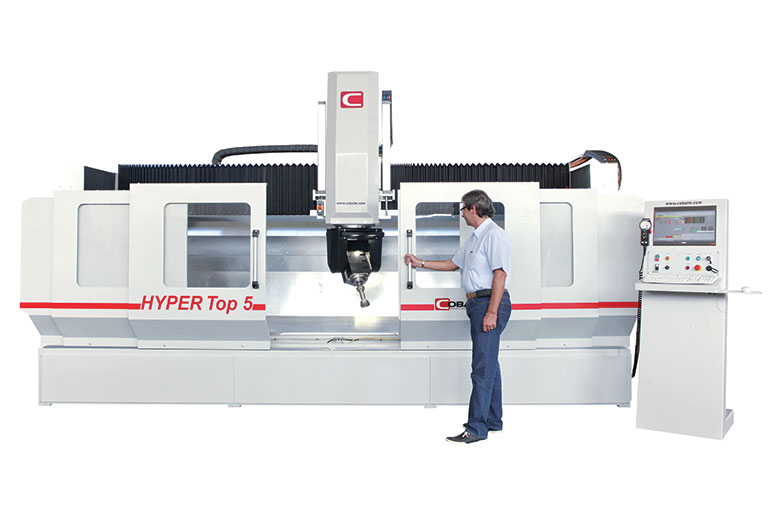

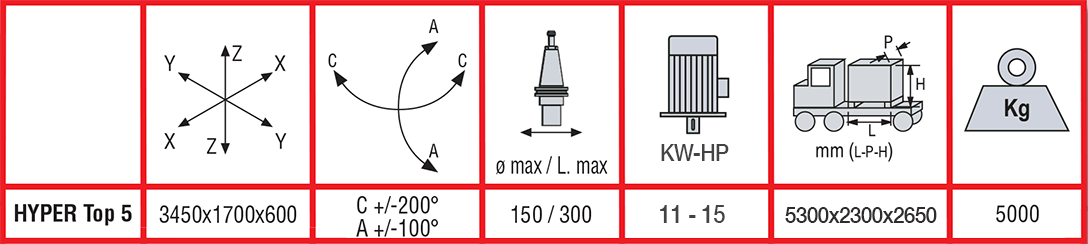

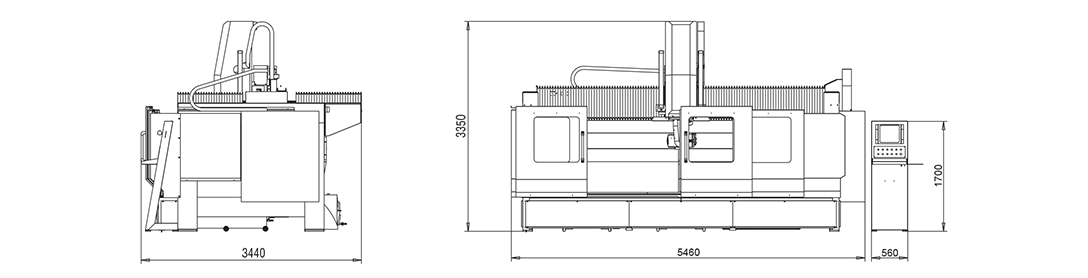

The HYPER TOP Machining Center is a numerically controlled machine with 5 interpolated axes, for working of marble, granite and engineered stones. The HYPER TOP has a rugged electro welded metal structure, completely hot galvanized. The side walls are galvanized and treated with special polyurethane coatings. The machine is designed with a “moving bridge” structure and the work surface table is made from precision rectified solid aluminum plates. The axis movement is driven by brushless motors on precision racks with inclined teeth. The sliding is on linear ball bearing guides. Bi-rotary heads with vector control are equipped with powerful spindle motor. The HYPER TOP is equipped with intelligent and user friendly three-dimensional software for the creation of artistic works using the contemporary/interpolated movement across the 5 axes. The HYPER TOP is especially suitable for drilling, milling, recess, artistic works on solid block, as well as polishing of flat surfaces and edges. With its generous working surface of 3500 x 1700 mm the HYPER TOP can easily satisfy the most exigent needs in terms of speed, precision and versatility. Several options are available (see below).

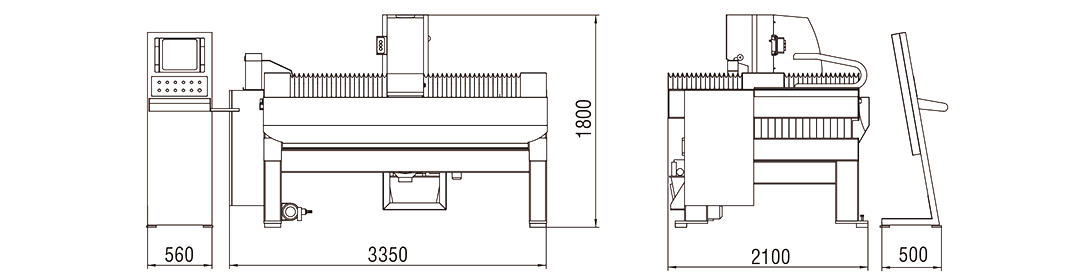

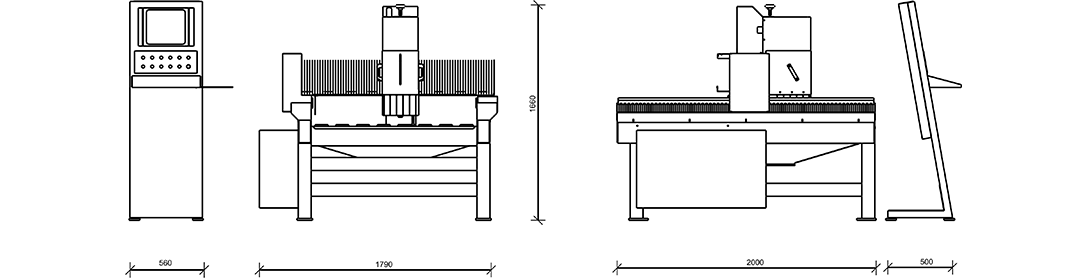

The IDEA PLUS CNC Pantograph is a numerically controlled machine with 3 coordinated axis ( X,Y,Z), which provides precise positioning of the tooling head. This machine is designed for the realization of articles for funerary art (drilling, incisions, etc.), for furniture and bas-relief work on marble, granite and natural stone. The electro-spindle is inverter controlled providing high precision adjustable speed. The electro-spindle is also built to provide internal and external cooling water for the tools. The machine is equipped with a stainless steel tank for water recovery and recycling pump. The basic program for the personal computers includes the drilling plans suitable for the many categories of works, in addition to several types of characters and images.

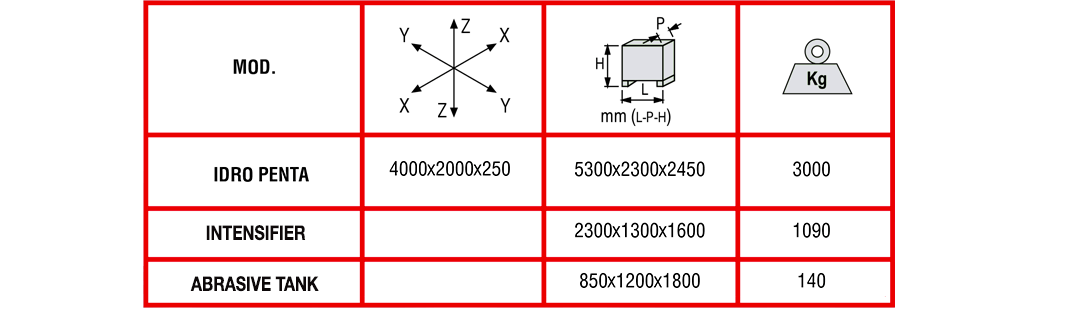

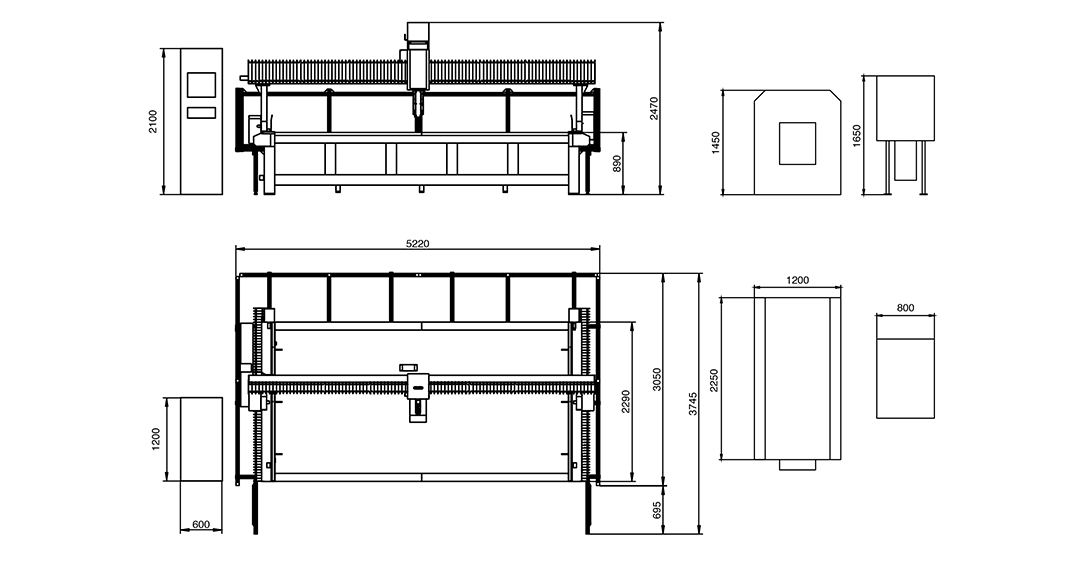

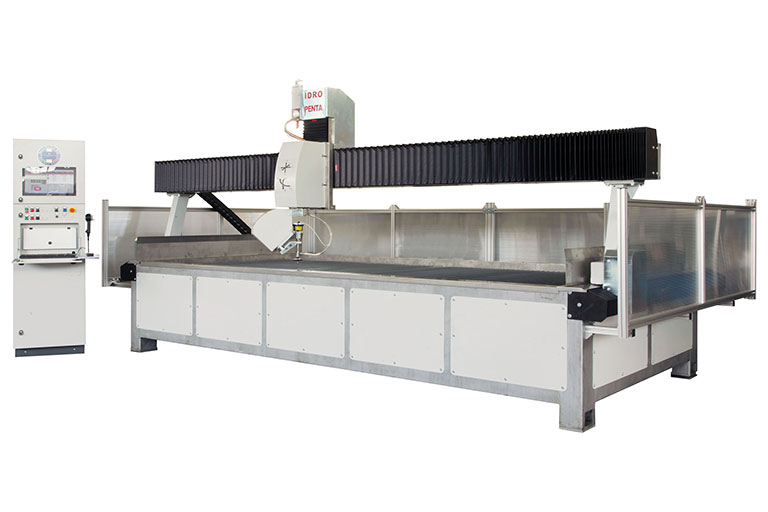

The IDRO PENTA water jet is a numerically controlled machine with 5 interpolated axes for simultaneous control. IDRO PENTA is a valuable machine to have as it can work with hard and soft materials. For hard materials such as stone, glass and steel the machine uses water and abrasive material as silica type and on the soft materials IDRO PENTA uses only water. The machine consists of a bridge structure that moves on the single block frame; the bridge is driven by two brushless servomotors in gantry configuration providing thus better precision and reducing the number of moving mechanical parts. The sliders are equipped with linear ball bearing guides, which are tempered and rectified. Each linear bearing has four contact points to ensure maximal precision and ruggedness. The moving assemblies are protected against dirt, water and dust by high quality profiled machine-way covers to increase the lifetime and preserve the precision of the gears. Advanced brushless servomotors provide the precise motion and positioning of the head. The water tank container is made of hot galvanized steel and integrated in the frame-base to save shop space. The grid to support the working material is composed of large plates vertically placed in comb configuration, within which are inserted interchangeable galvanized steel sheets. Useful area of work (X-Y-Z): 4000 x 2000 x 250 mm.

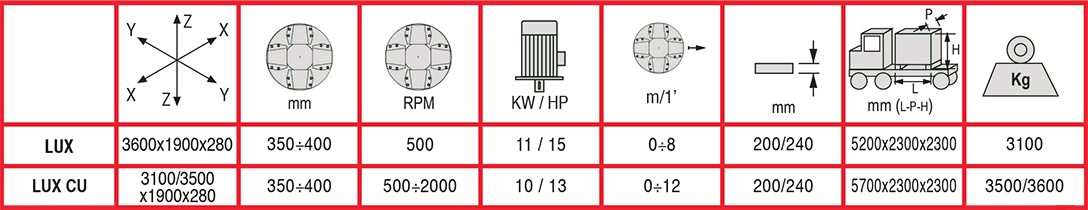

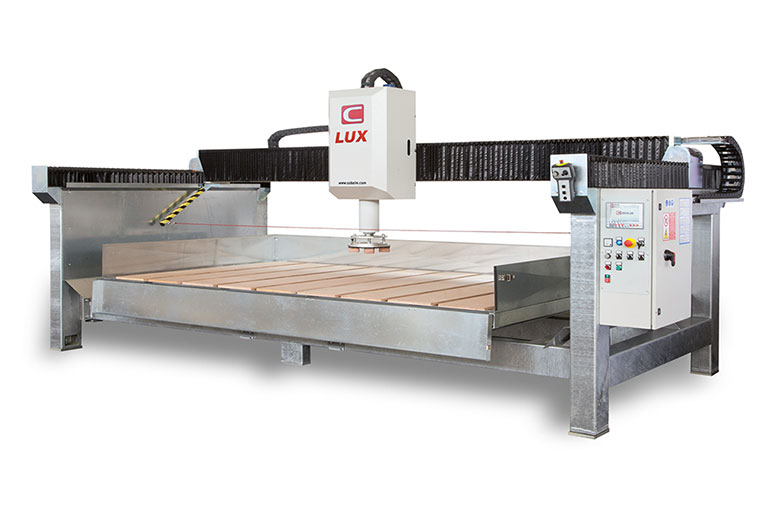

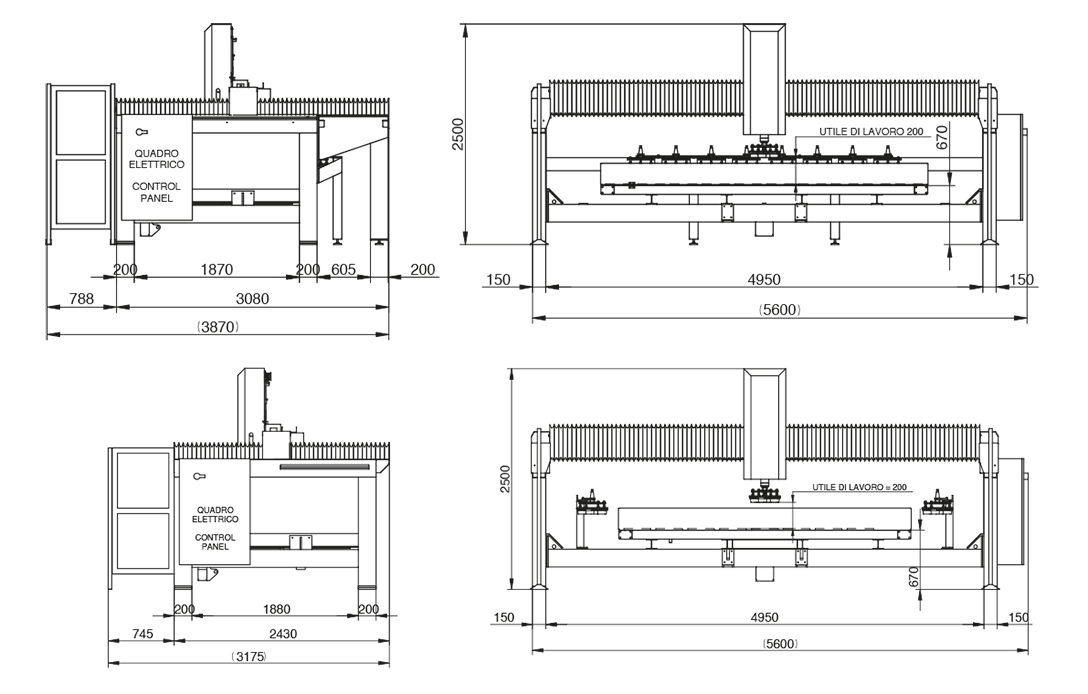

LUX is a single head bridge polishing machine for flat surfaces. The machine is built in electro welded metal that has been hot galvanized and treated with special epoxy coatings. Working table is built in heavy metal covered with plywood staves. The protection side panels are made with galvanized steel. This rugged single block machine does not require masonry work or technical assistance for installation. It is easy to use for polishing, sanding, brushing and the specific rotary tool can be bush-hammered, scratch etc.. Although the older versions of the machine had the automatic tool changer as an option, the current production line provides the automatic tool changer as included in the standard version. This feature diminishes the total cycle time per slab and also saves valuable operator time. The main control panel with is equipped with color touch screen to facilitate operation. The machine has several pre-programmed cycles and programs for machining flat surfaces.
